Keeping You in Compliance

On January 1, 2024 the NSF/ANSI/CAN 61 Section 9 Lead Leachate Standard will become mandatory.

Be ready with our lead-free* and low-lead brass solutions

We have excellent American-made brass solutions that will ensure you comply with the current and coming standards. Select the brass alloy that works best for the products you are manufacturing. Our three brass options, ECO FORGE®, ECO BRASS®, and Low Lead Brass, have been successfully used for part production and are the ideal fit to keep your components compliant as we move toward 2024. These three options provide sound solutions to continue operating in compliance with NSF/ANSI/CAN 61, Section 9 lead leachate standard.

NSF/ANSI/CAN 61 Section 9 Requirements:

  • Mandatory January 1, 2024
  • Endpoint devices (e.g. faucets) reduced from 5 to 1 µg
  • Components (e.g. valves) reduced from 5 to 0.5 µg

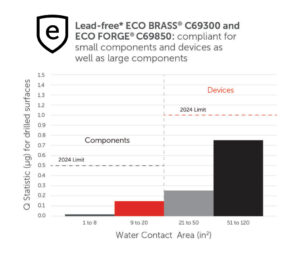

Average “Q” values for drilled, water contact surfaces, extrapolated to 8, 20, 50 and 120 in2

1 to 8 (in2)

Small Components

Fittings, shut-off valves, valve cartridges, center body tees, aerator housings

9 to 20 (in2)

Large Components

Faucet bodies & faucet spouts

21 to 50 (in2)

Small Devices

Bathroom faucets

51 to 120 (in2)

Large Devices

Kitchen faucets, drinking fountain bubblers



Our experts at Wieland Chase are here to discuss your specific manufacturing needs to ensure a smooth transition to a new alloy if needed. The mechanical properties and chemical composition of these alloys will meet your product’s requirements.

ALLOY PROPERTIES AND MACHINABILITY

Property C69300 ECO BRASS®1  C69850 ECO FORGE®2 C27450 LOW LEAD®1
Tensile Strength (ksi)  90 77 63
Yield Strength (ksi) 48 55 40
Elongation (%) 35 22 28
Mid-Radius Hardness (Rb) 88 87 74
Dezincification Depth (µm)3 0 40 400
Machinability (vs C360)4 88 82 70
1Typical mechanical properties for 1.000”RD H02 temperature rod
2Average of maximum dezincification depth values from Corrosion Testing Lab, Newark DE
3Based on production experience and independent lab testing machinability rated at 100% for single point machining

NOMINAL ALLOY COMPOSITION (WITH ASTM RANGES)

Property C69300 ECO BRASS®1  C69850 ECO FORGE®2 C27450 LOW LEAD®1
Copper (%) Nominal
ASTM		 75.3
73-77		 68.4
67.5-69		 61.6
60-65
Lead (%) Nominal
ASTM		 0.05
0.09 max		 o.05
0.09 max		 0.18
0.25 max
Silicon (%) Nominal
ASTM		 2.9
2.7-3.4		 1.7
1.53-2.0		 –
Phos. (%) Nominal
ASTM		 0.1
o.o4-0.15		 0.09
0.04-0.15		 –
Zinc (Approx. %) Nominal
ASTM		 21.5
Remainder		 29.8
Remainder		 38
Remainder
